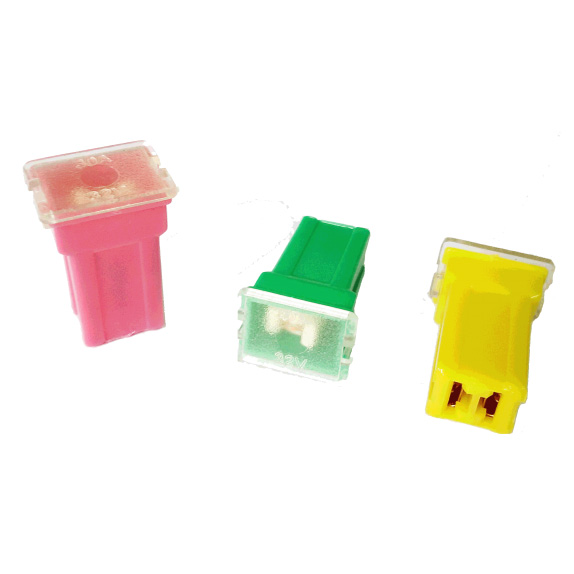

汽車插件保險絲FKY-2938，車用保險絲，汽車保險絲

Description
PAL fuses are commonly found on many Japanese and domestic built vehicles.

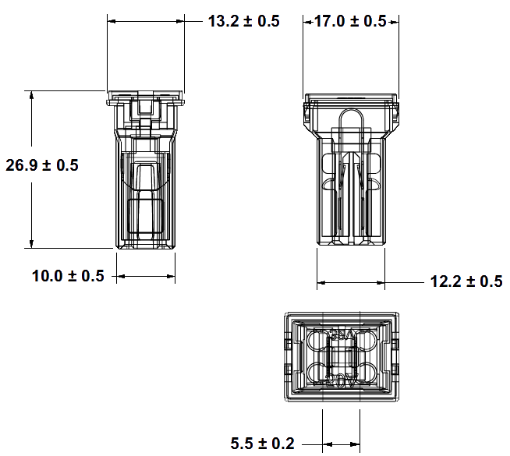

Dimensions(mm)

Specifications
Voltage Rating: 32 VDC
Current Cycling: 24?C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40?C to +125?C
Complies with JASO 0612

Time-Current Characteristics

% of Rating	Opening Time Min / Max (s)
110	14,400 s
200	5 s / 100 s
350	0.2s / 7 s
600	0.040 s / 1 s

Ratings

Part Number Current	Rating (A)	Body Color
FKY293820	20	LIGHT BLUE
FKY293830	30	PINK
FKY293840	40	GREEN
FKY293850	50	RED
FKY293860	60	YELLOW
FKY293870	70	BROWN
FKY293880	80	BLACK
