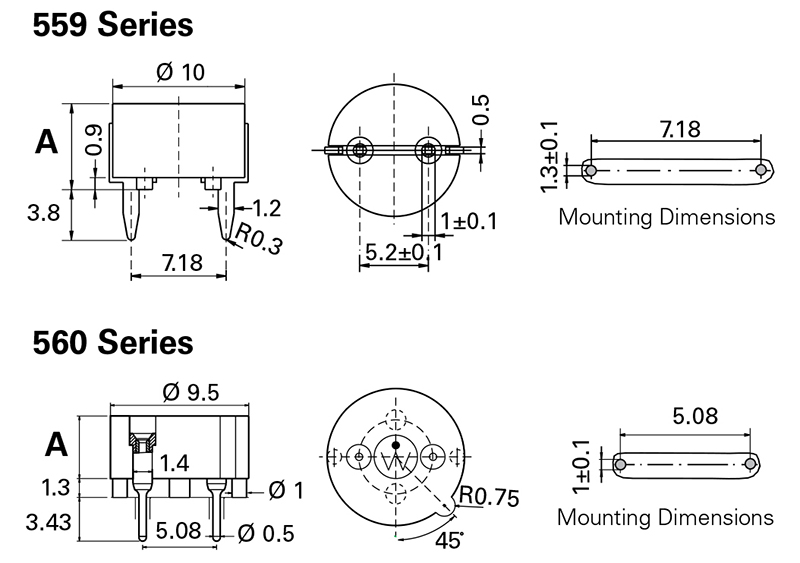

Dimensions units in mm
|
Type |
559 Series (Lead Free) |
560 Series |
|
|
Compatible Fuses |
TR5/TE5 |
TR5/TE5 |
|
|
Materials |
Holder: Black Thermoplastic, UL94 V-0 Polyamide PA 66 |
Holder:Thermoplastic，UL 94 V-0 Polyester PET |
|
|
Metal Parts: Copper alloy; solderable tinned |
|||
|
Electrical Data (23℃) |
Rated Voltage: 250V |
||
|
Max. Current/Power: 6.3 A /1.6 W |
|||
|
Mounting |
PC Board, 7.18 mm pin spacing |
PC Board, 5.08 mm pin spacing |
|
|
Solderability |
max. 260℃, 10 s (Wave) |
||
|
Minimum Cross Section |
Conducting path - 0.1 mm2 |
||
|
Unit Weight |
0.63 g |
0.4 g |
|
